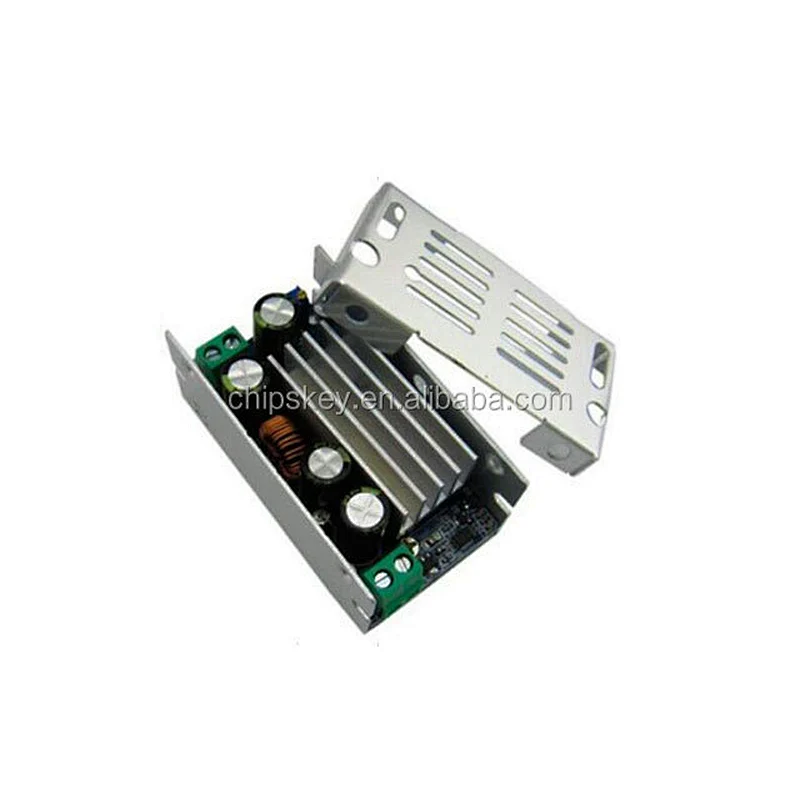

160W DC DC Boost Converter Module 7-40V/8-60V Adjustable Step-down Module

• Place of Origin:China
• Brand Name:Chipskey
• Model Number:19j081
• SKU:19J081
• Stock:In Stock ,Can Ship out Immedicate

This part of the DC power module buck switching power supply, input voltage should always be greater than the output voltage and need at least 1.25V differential input power = output power + losses (energy conservation principle)

  This module has been revised to upgrade again, the legacy has been discontinued, emerged goods are the new, the new higher input voltage up to 40V

  The new reserve 12V fan regulator mounting interface, standard fuse, power output instructions can be directly converted into a single-turn potentiometer with handle, ultra-stable performance of the rated current of 8A new shelves all standard distribution aluminum housing maximum power 160W DC-DC buck module input reverse voltage over-current protection over-temperature multi-circuit design   high efficiency and low ripple

Module parameters:

Module Name: 160W adjustable buck module

Model: ZS-PD8

Type: Non-isolated step-down module (BUCK)

Weight: 90g

Input voltage: 5-40V (40V, please limit left margin)

Output voltage: 1.25-36V continuously adjustable

Output Current: rated 8A (current size and pressure temperature have associated large current chip overheating automatic current reduction in the average ambient temperature of natural heat dissipation current can enhance heat dissipation in 5-6A stable long working 8A)

Output power: natural cooling power of up to 80W to enhance heat dissipation 160W

Operating temperature: -40 to + 85 degrees

Operating frequency: 180KHz

Conversion efficiency: up to 95% (efficiency of input and output voltage, current, pressure related)

Short circuit protection: Yes (please try not to risk a short circuit short circuit)

Overtemperature protection: (automatically reduce the output after overtemperature)

Input reverse polarity protection: Yes (please do not reverse time)

Transients Overvoltage Protection: Yes (overvoltage protection voltage 40.5V)

Wiring: high current terminals, solderless, IN + IN- input of positive and negative, OUT + OUT- output positive and negative

Aluminum housing Size: 70MM * 39MM * 31MM

Applications:

   This module can be applied in the field of blood pressure is higher than the output voltage of the input voltage, such as batteries, power transformers, DIY adjustable power supply, 24V car T of the power supply, low-power motor control, automotive LED lights with power, industrial equipment buck, 12V turn 3.3V, 12V turn 5V, 24V turn 5V, 24V switch 12V and so on.
