- Model Number:4005
- Type:Power Management Development Boards and Kits
- Place of Origin:China
- Category:Module
- Part number:4005
- Brand:chipskey

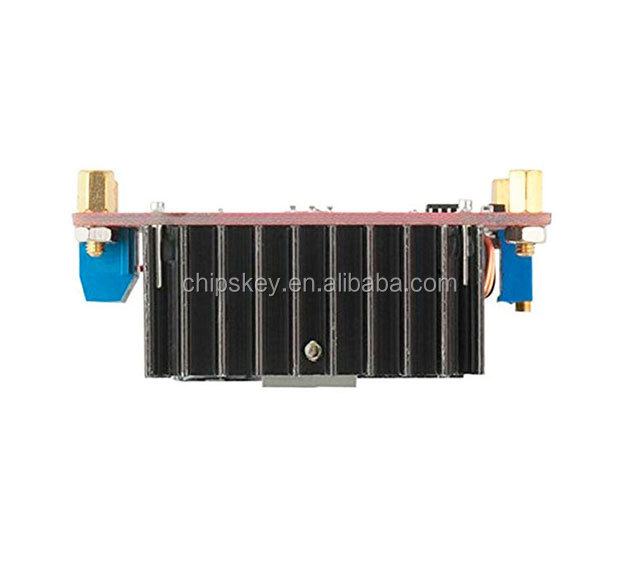

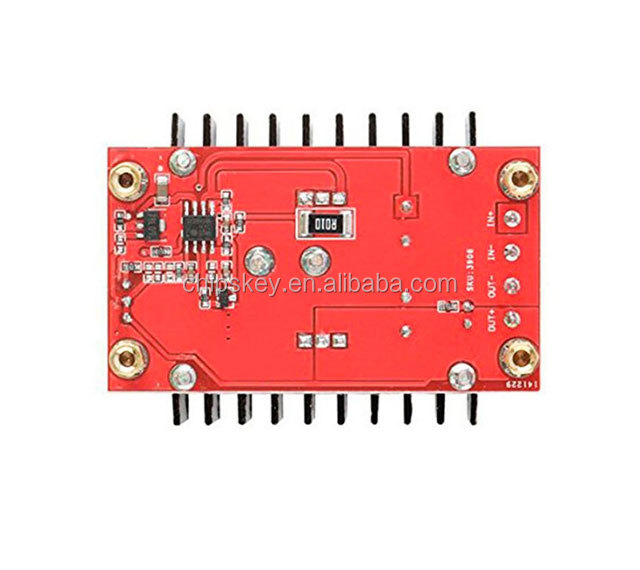

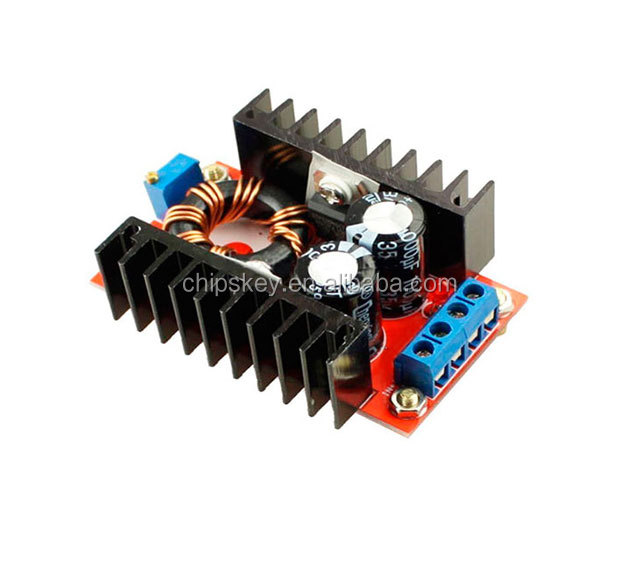

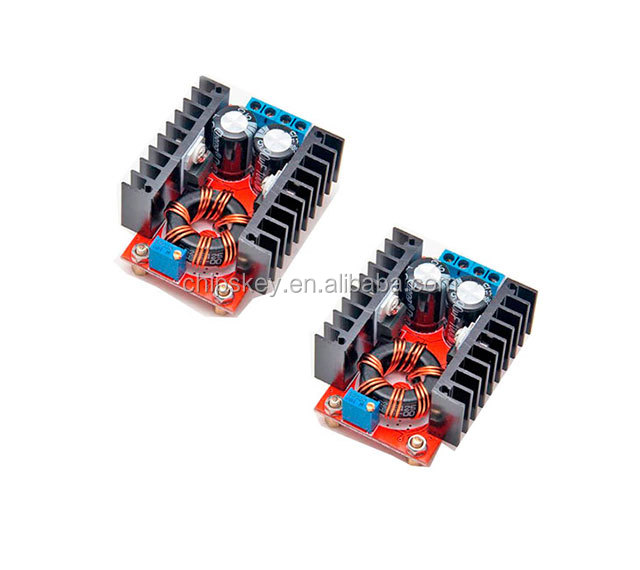

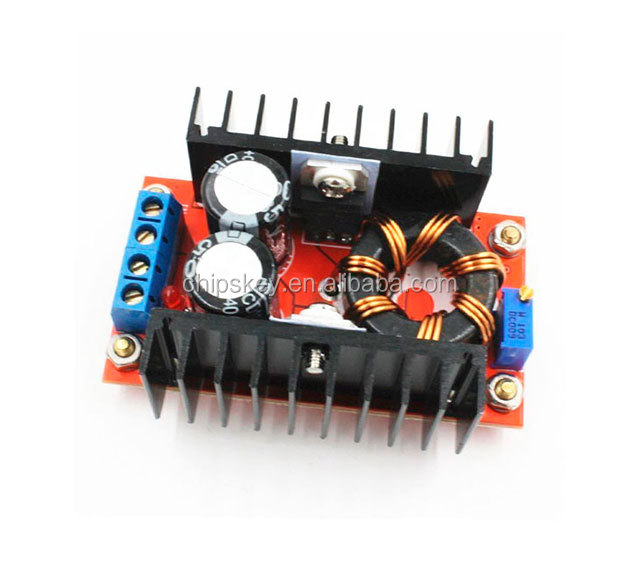

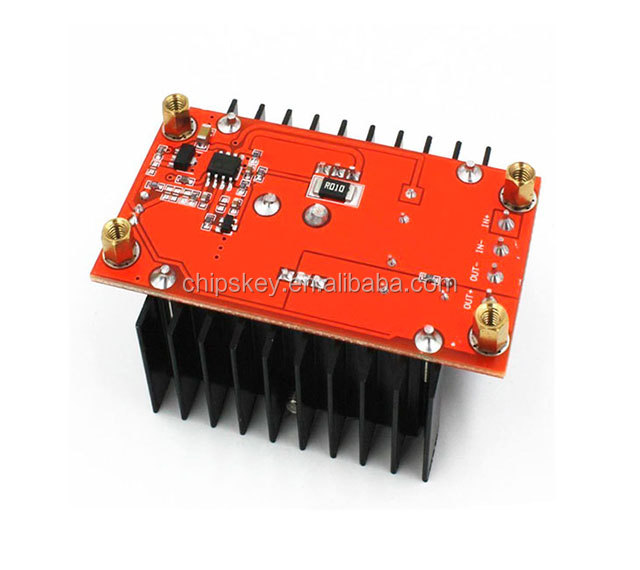

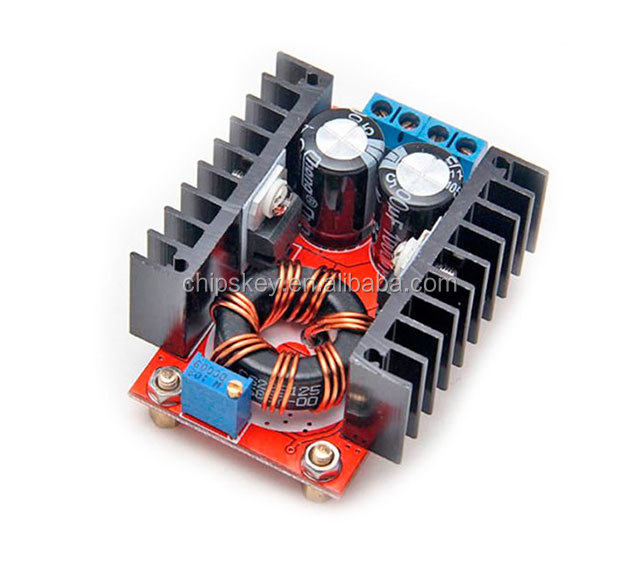

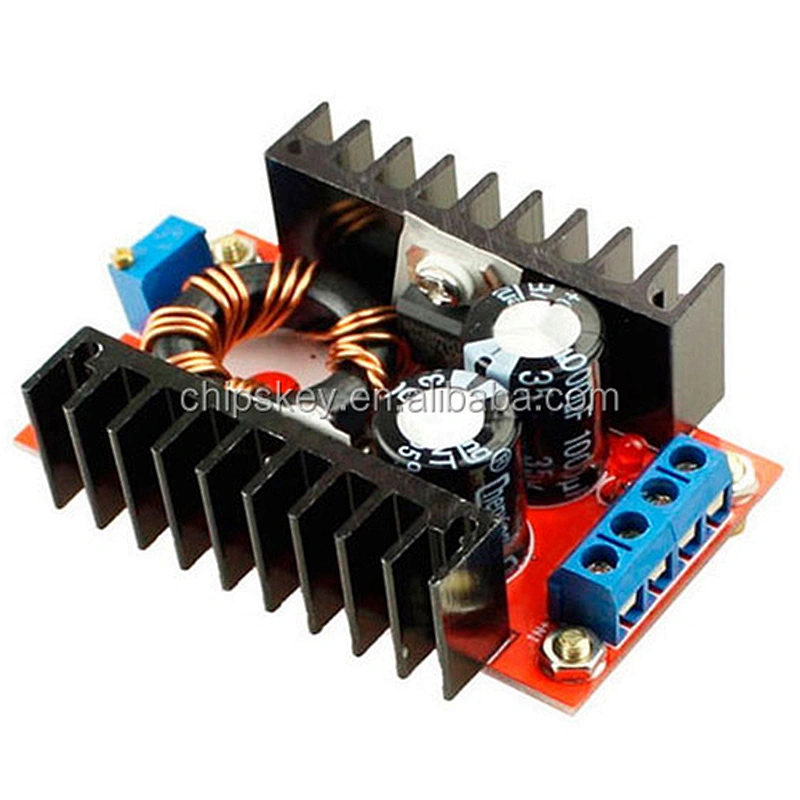

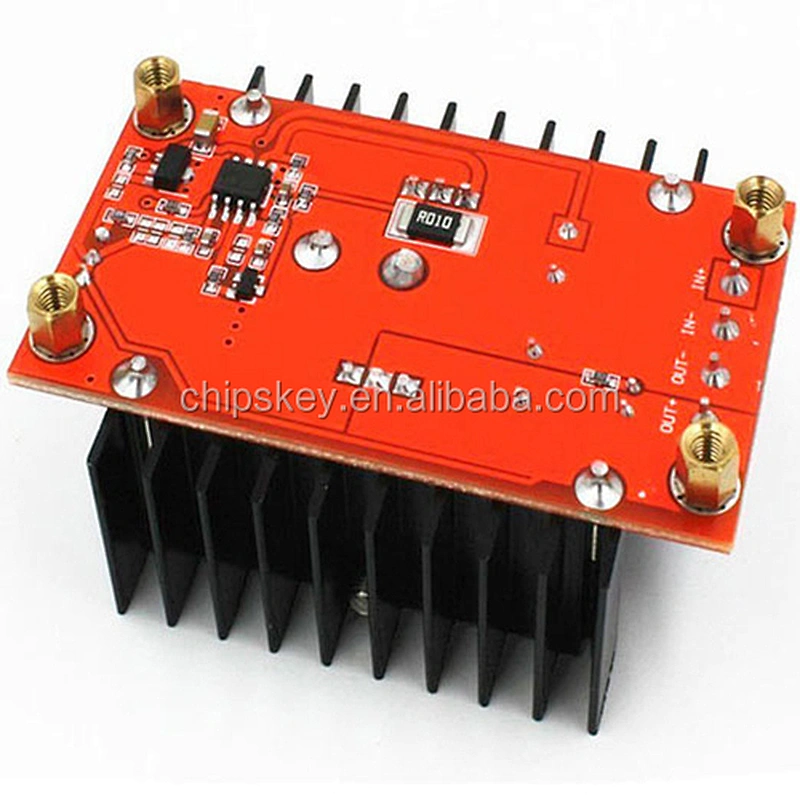

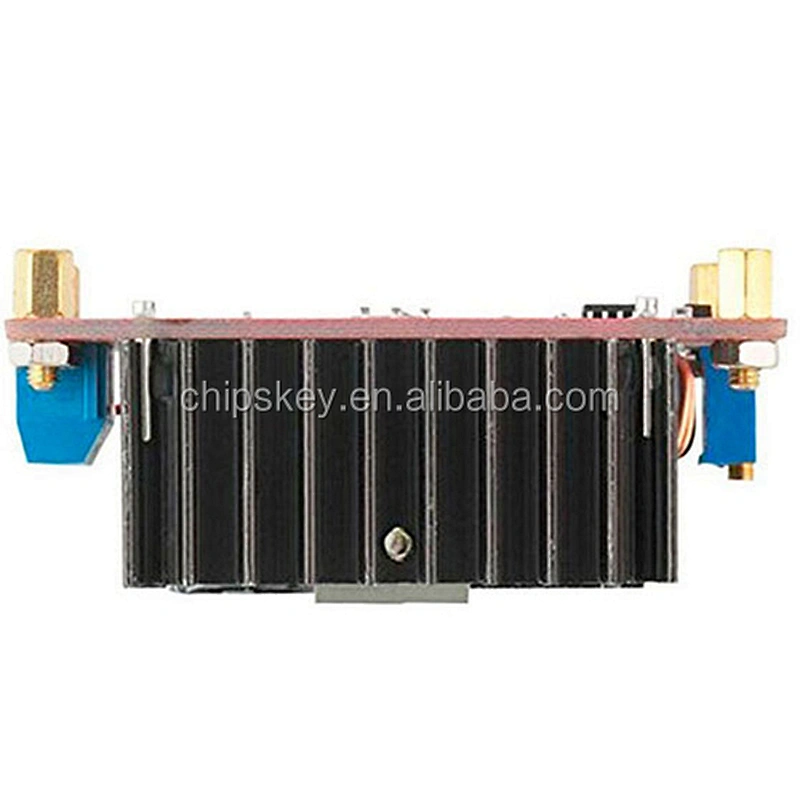

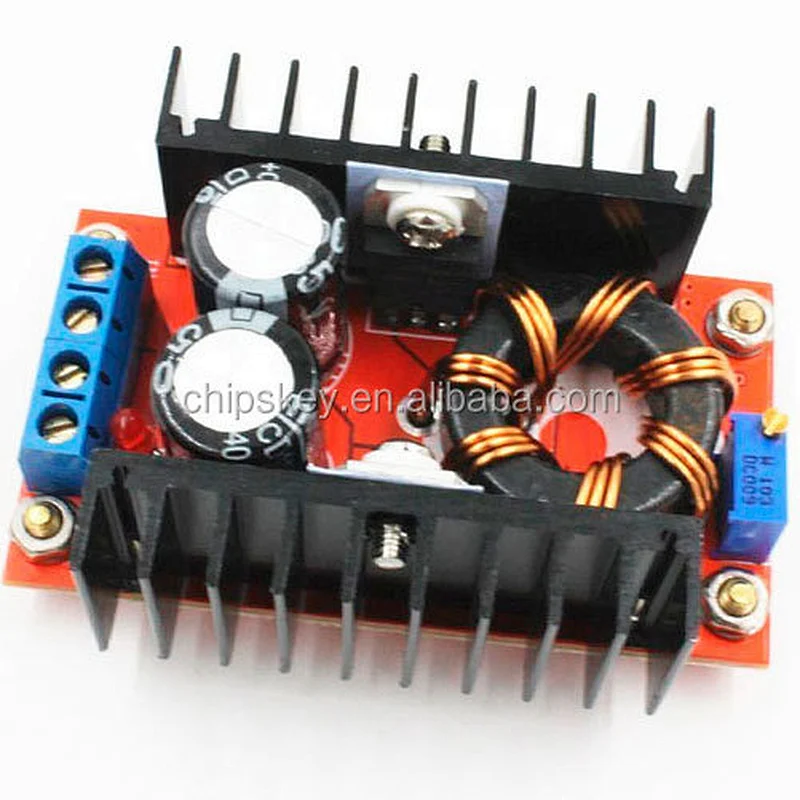

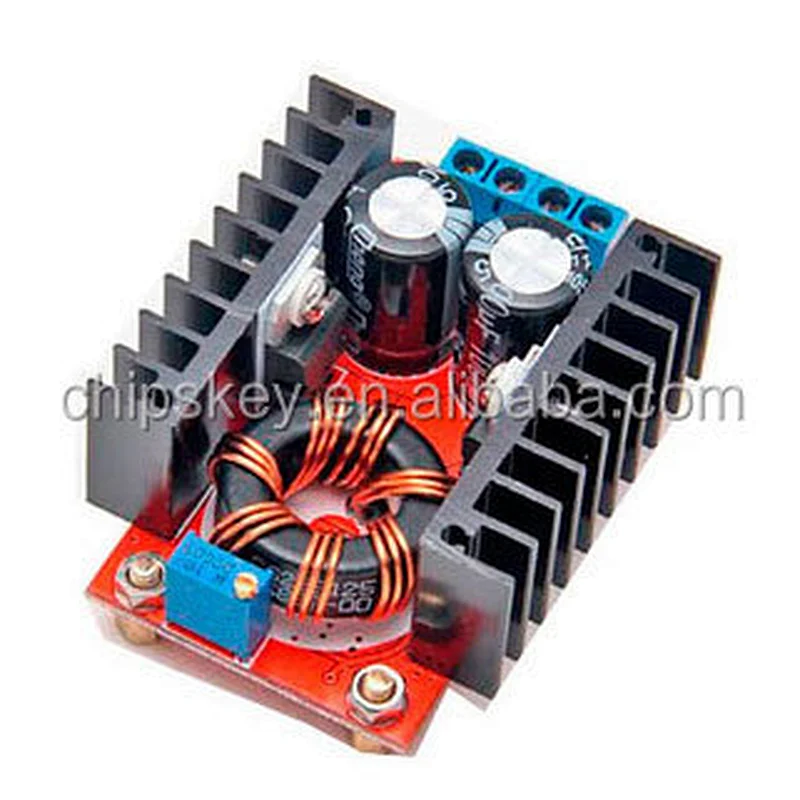

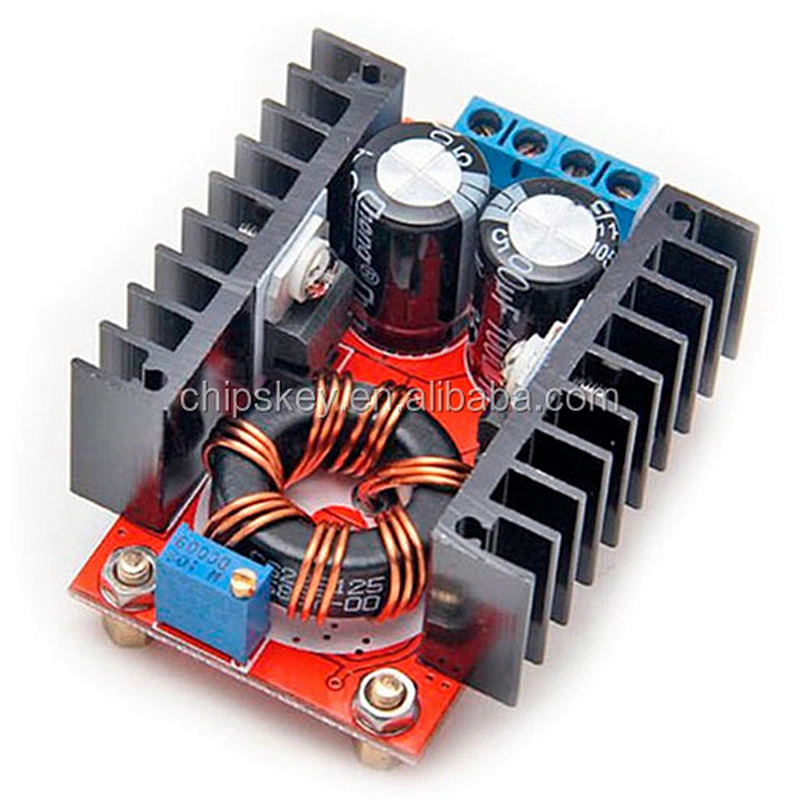

DC-DC Car Laptop Power,10-32V turn adjustable from 12-35V Boost module, 150W
Product description
Size:150W Step Up Converter
Output current: 6A (max.)
Conversion efficiency:94% (the highest)
Switching frequency: 65KHz
Output ripple: The 150mV (20M bandwidth)
Load regulation: ± 0.5%
Voltage Regulation:± 2.5%
Operating Temperature:-40 ℃ to +85 ℃
Size: 65 * 56.5 * 23 (L * W * H) (mm)
Product Features:
Modules uses the ST the original control chip, expanding outside the ultra-low on-resistance MOSFET, ultra-high efficiency (up to 94% Input 16V Output 19V, 2.5A measured), the direct use of 100W can be reached strengthening heat (plus fan) up 150W
This module is selected materials for the top-level high-power plug-in component, using machine patch on the ground floor, reflow soldering, each module before shipment after a two-hour burn-in test to ensure high reliability.
Typical output:
Easily led 65W 90W laptop dual-core
With ordinary 19V 3.42A laptop module temperature of about 45 degrees with 12V battery
Applications:
DIY an output adjustable vehicle power supply, you can (14-35V) free continuous adjustment only need to enter the access 12V power supply, the output voltage, the output voltage can not be lower than the input voltage, oh.
Universal Car Laptop power. Input connected to your 12V power, the output voltage can be adjusted to your notebook work.
power supply for your electronic equipment, as long as the voltage regulator voltage you need and the current does not exceed the rated current work properly.
