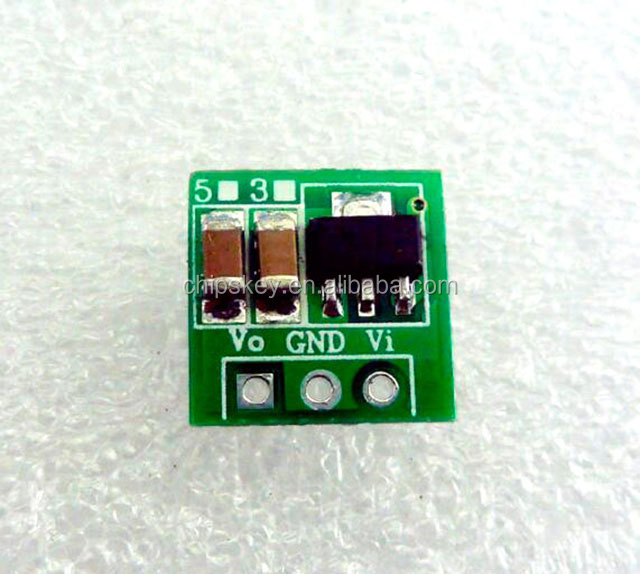

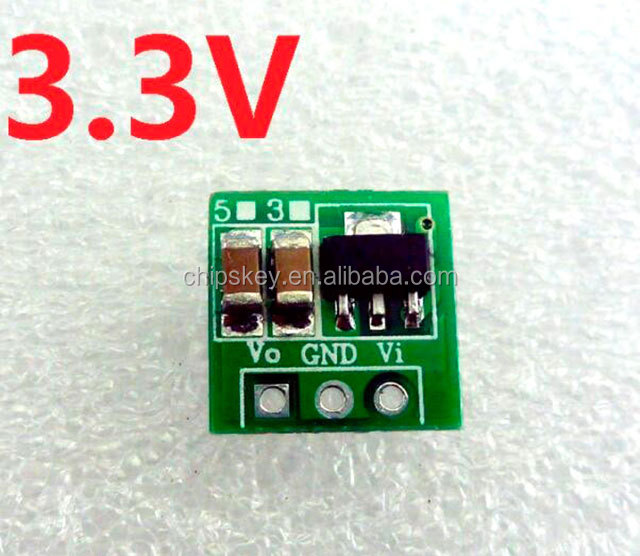

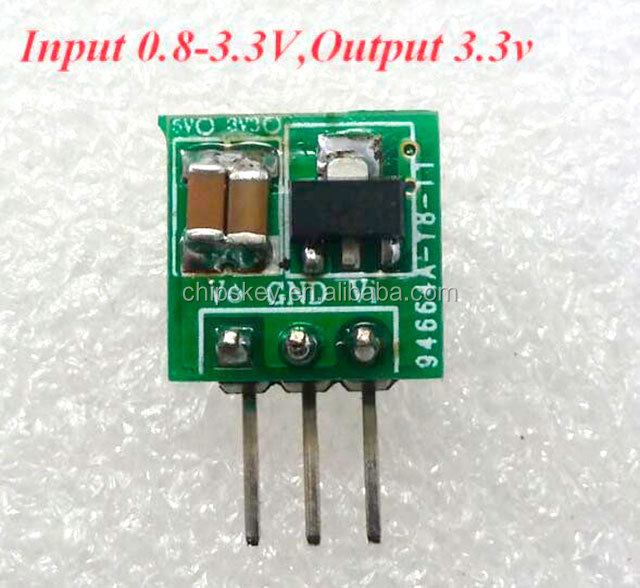

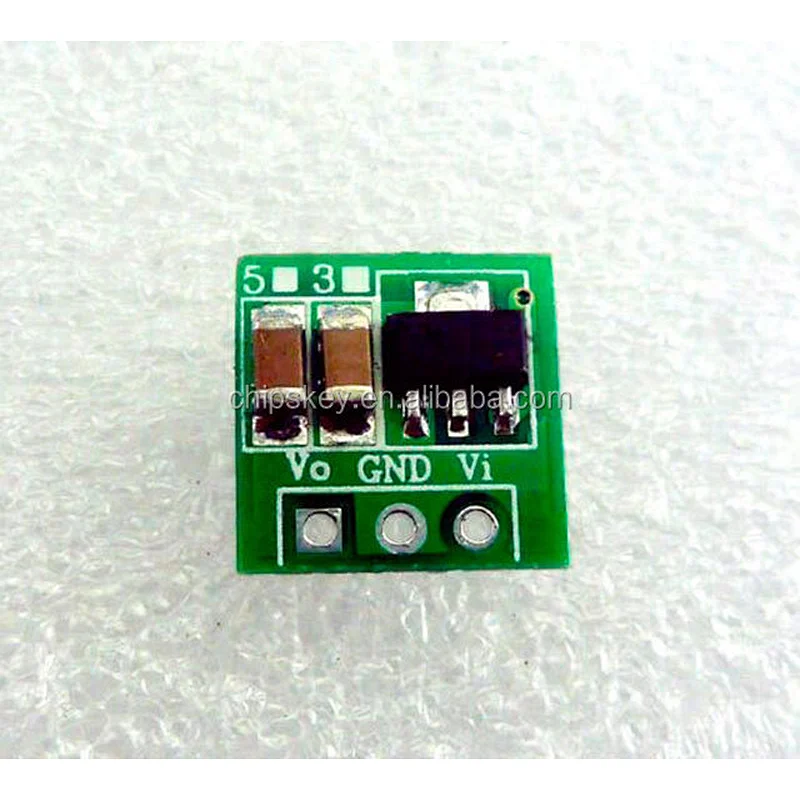

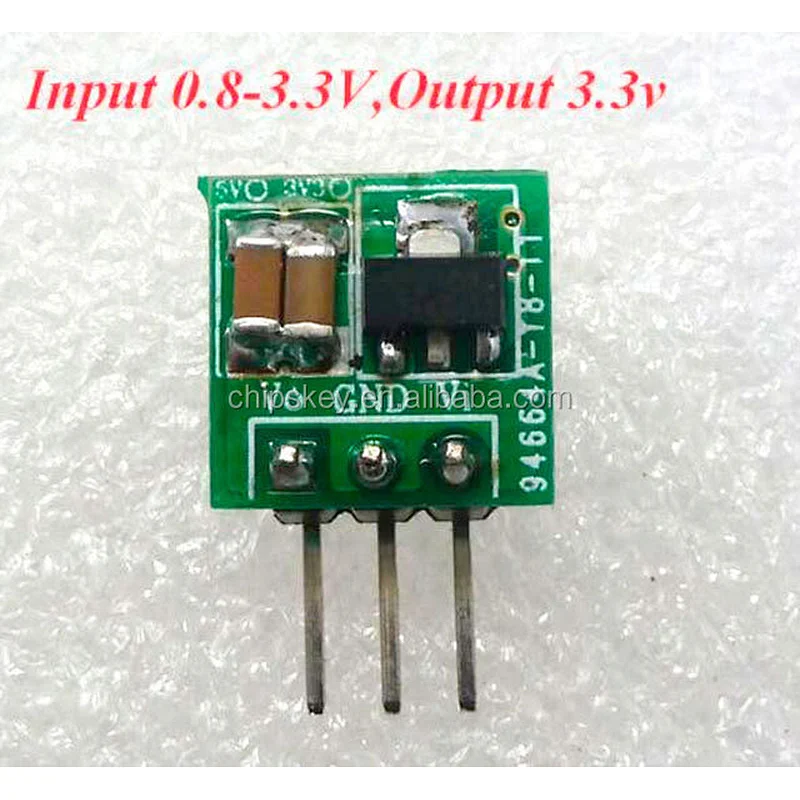

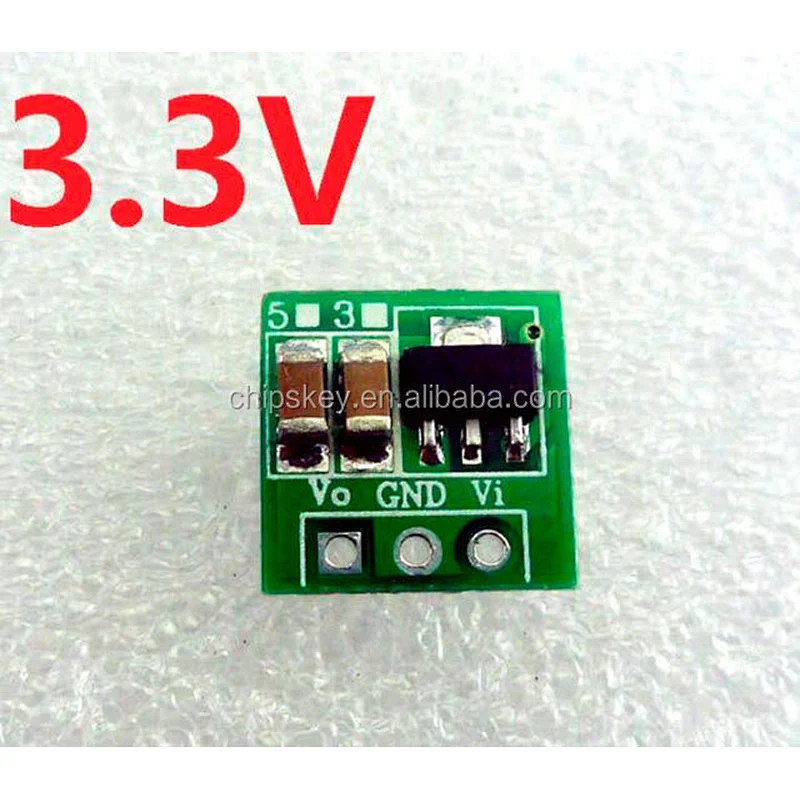

1.5V 1.8V 2.5V 3V 3.3V 3.7V 4.2V to 5V DC-DC boost converter module voltage Regulator

• Model Number:27109
• Type:Data Conversion Development Boards and Kits
• Place of Origin:China
• SKU:27109

Function parameter:

5V Output Version:

Input voltage 0.9-5V; Output voltage 5V
Maximum output current: 480 mA

Starting voltage 0.8V, the output current 7MA
Input 1-1.5V, output 5V 40-100MA;
Input 1.5-2V, output 5V 100-150MA;
Input 2-3V, output 5V 150-380MA;
Input more than 3V, output 5V 380-480MA;

DC-DC boost converter module, the operating frequency of 150KHZ, the typical conversion efficiency of 85%
Pins 2.54MM pitch
Size: 11mm x 10.5mm x 7.5mm (very small)
Weight: Approximately 1 gram (very light)

This is the voltage boost converter module, the use of time must comply with the following conditions:
1 input voltage can not be greater than the nominal voltage, otherwise it will burn out the module
2 Input power must be greater than the output power, otherwise the output voltage will be less than the nominal voltage.
3 output load can not be greater than the nominal load, otherwise the output voltage will be less than the nominal voltage.
